Stanley POP-Pneumatic Rivet Tool Repair Parts Schematics
ProSet® 3400 Series Maintenance Manual

ProSet® 3400 Series Maintenance Manual

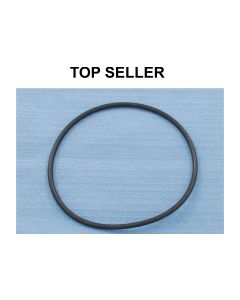

DPN900-071 O-Ring Schematic Part #69
$1.45
DPN900-013 O- Ring Schematic Part #45
$0.75

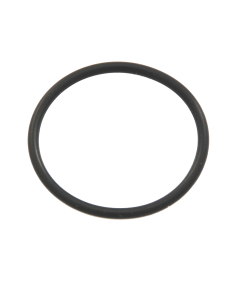

DPN900-059 O-Ring Schematic Part #7
$1.15
DPN276-005 Nose Housing Nut Schematic Part #8
$18.28

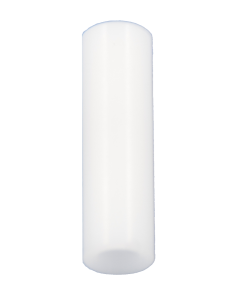

U-DPN276-009 Schematic Part #15
$9.75

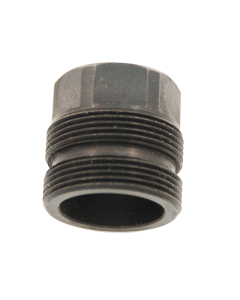

DPN276-010 Housing Adapter Schematic Part #16
$52.47
DPN901-021 Return Spring Schematic Part #21
$24.45
DPN900-065 O-Ring
$1.25
DPN276-013 MCS Valve Case Schematic Part #29
$13.14
DPN276-014 MCS Valve Rod
$8.52

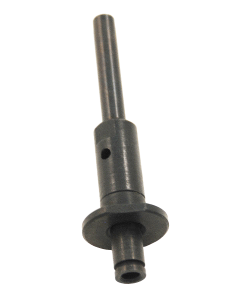

FAN276-022 Ejector (Assembly) Schematic Part #48
$42.99
DPN900-066 O-Ring
$1.25
