Stanley POP-Pneumatic Rivet Tool Repair Parts Schematics
INSTRUCTION MANUAL ProSet® 2500 Series Pneumatic Blind Rivet Tool

INSTRUCTION MANUAL ProSet® 2500 Series Pneumatic Blind Rivet Tool

Buy Parts Repair Services Print Schematics

Schematics Image

INSTRUCTION MANUAL ProSet® 2500 Series Pneumatic Blind Rivet Tool

DPN900-017 O-Ring
$1.25
DPN239-120 Fitting Schematic Part #70
$3.56
PRG540-45 O-Clamp
$1.50
DPN275-003 Jaw Guide Lock Schematic Part #5
$8.85
DPN275-004 Nose Housing
$60.06
DPN900-027 O-Ring Schematic Part #7
$2.76

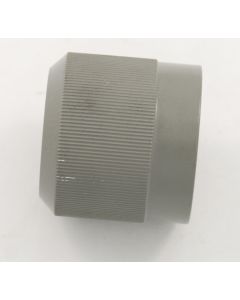

DPN275-005 Nose Housing Nut Schematic Part #8
$19.25

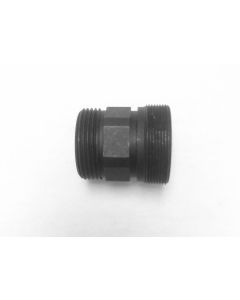

DPN275-008 Housing Adapter Schematic Part #14
$11.85

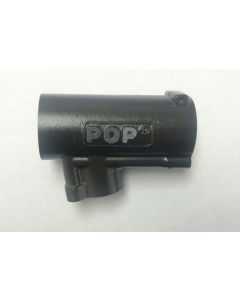

DPN275-010 Handle Upper for Proset 2500MCS
$95.50
